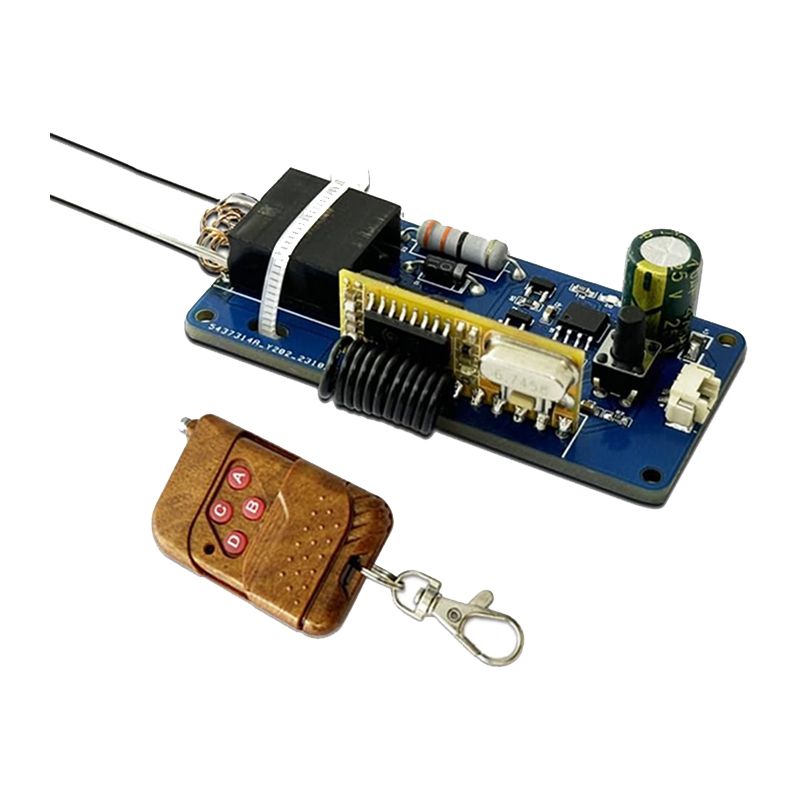

The Remote Controlled Pulse High Voltage Inverter is a versatile module designed for generating high-temperature arcs through remote or button control. Programmed with the NY8B062F chip, it offers stable performance and supports 433M remote control for easy and convenient use. Ideal for applications requiring remote activation of high voltage arcs, it features LED indicators for successful remote pairing and compatibility with rechargeable lithium batteries.
Specifications of Remote Controlled Pulse High Voltage Inverter

Power Supply Port: 3.7V lithium battery

Switch Button: Generates arc when pressed, stops when released

MCU: NY8B062F

Booster Coil Transformer: Three wires (thick, thick and thin, thin)

High Voltage Wire: Adjustable distance between wire ends

Compatible Battery: 18650 rechargeable lithium battery, 3.7V (not included)

Remote Control Frequency: 433M

Product Size: 28x58mm

Operation Voltage: 3.7V

Operation Current: —

Dimensions: 28x58mm

How to use of Remote Controlled Pulse High Voltage Inverter

Power Connection: Use a 3.7V 18650 lithium battery to power the module.

Remote Pairing: Press and hold the white button on the 433M module for 2 seconds to enter pairing mode. Press the “A” button on the remote control to pair, indicated by the LED flashing 4 times.

Reset Pairing: Long press the white button for 8 seconds to clear all paired remotes.

Control Modes: Generate arcs by either pressing the button on the module or using the “A” button on the remote. Release to stop.

Transformer Installation: Insert the thick wire into the leftmost hole, the intertwined thick and thin wire into the middle, and the thin wire into the rightmost hole on the PCB. Secure with plastic cable ties.

Usage Warning: Avoid prolonged button pressing to prevent module overheating and damage.
