Precautions for the use of test seat/burning seat:
If you find that the test cannot be done or the test performance is unstable during the use of the test seat/burning seat, it is recommended to use the following methods to solve it:
a) Use an air gun or an anti-static brush to remove impurities from the socket seat.
b) Clean the S0CKET with anhydrous alcohol, clean the attached impurities at the top of the shrapnel.
e) If you find that the shrapnel in the SOCKET is burned out, please purchase the corresponding socket to replace it.
d) The plug-in interface is not detected or cannot be tested, and check whether the shrapnel in the socket is burned out.
e) It is strictly forbidden to soak and clean with organic solvents such as Tianna water and board washing water to avoid damaging the internal structure of the board.
f) When not in use for a long time, please keep it sealed with an anti-static bag to avoid dust falling into it and affecting the test performance of the product.

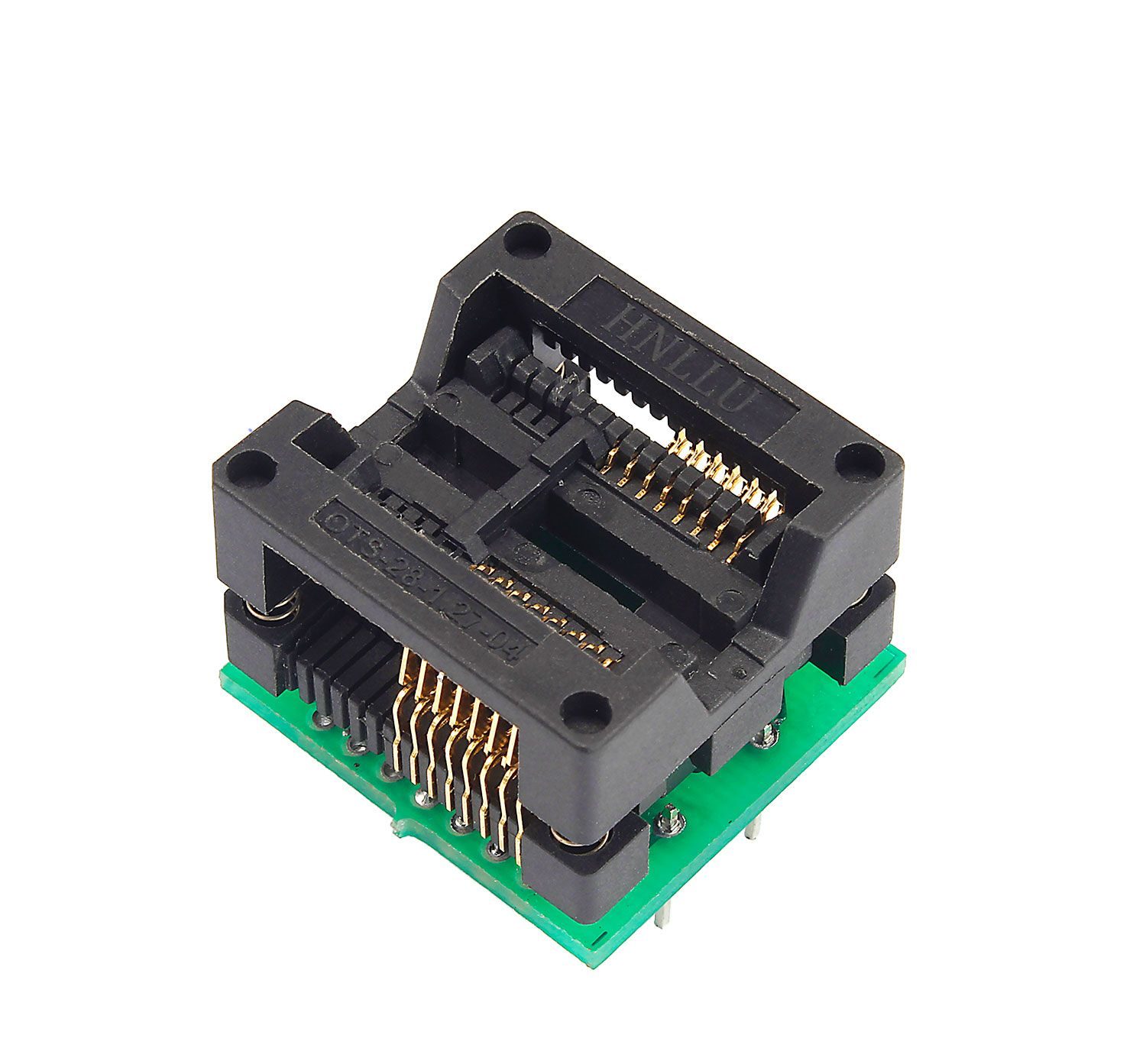

Features:
This socket adapter can be used for universal programmers
SOP16 to DIP16 used for 25 series flash IC adapter
SOp16 to DIP16 200mil Gold Plated Adapter

Specifications:
Material: PEI, PPS
Lifespan: 15,000 times
Operating temperature: -55°C~155°C
Size: 2.7×2.5×1.7cm/1.06×0.98×0.67inch
