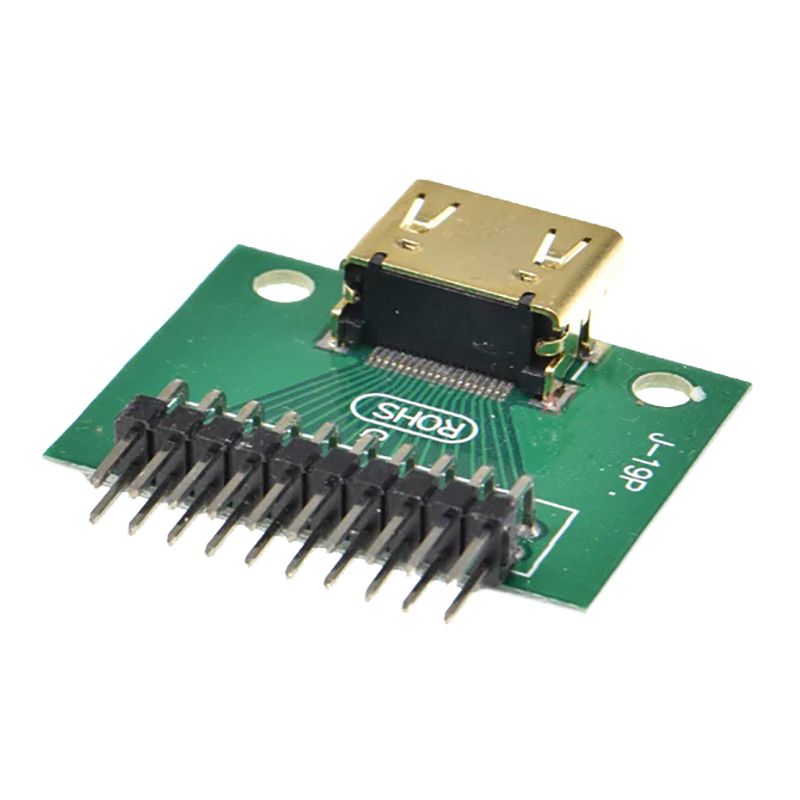

The HDMI to DIP Adapter Breakout Board enables seamless integration of HDMI signals with standard DIP-based circuits. Available in both male and female configurations, it is ideal for prototyping or development projects involving HDMI connectivity. With clearly labeled pinouts and a standard 2.54mm pitch, it simplifies connections for signal testing, routing, or interfacing with other components.
Specifications of HDMI to DIP Adapter Breakout Board

Connector Options: HDMI Male or HDMI Female

Pin Spacing: Standard 2.54mm DIP

Material: Durable PCB with clear labeling

Applications: HDMI signal testing, prototyping, or integration with custom circuits

Dimensions:

Male: 18.8x28mm

Female: 35x28mm
