Description:

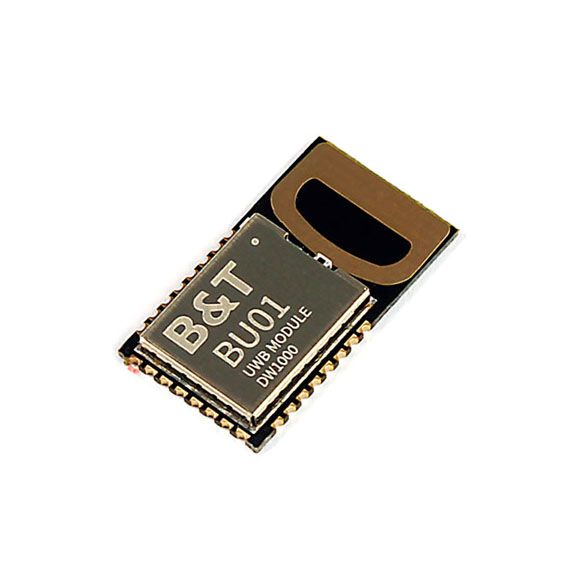

BU01 is an ultra-wideband (UWB) transceiver module based on Decawave’s DW1000 design. BU01 integrates antenna, RF circuit, power management and clock circuit. BU01 can be used in two-way ranging or TDOA positioning system, positioning accuracy can reach 10 cm, and supports data rates up to 6.8 Mbps.
Specification:
Simple integration without RF design
Using RTLS infrastructure to expand communication range
Super multipath fading has strong anti-interference ability
Support high label density
Compliant with IEEE 802.15.4-2011 UWB standard
Supports 3.5 GHz to 6.5 GHz operating frequency band
Programmable transmit power
Power 2.8 V to 3.6 V
Power consumption <1mA in sleep mode
Support two-way ranging and TDOA
Support SPI interface
Data rate: 110 kbps, 850 kbps, 6.8 Mbps
