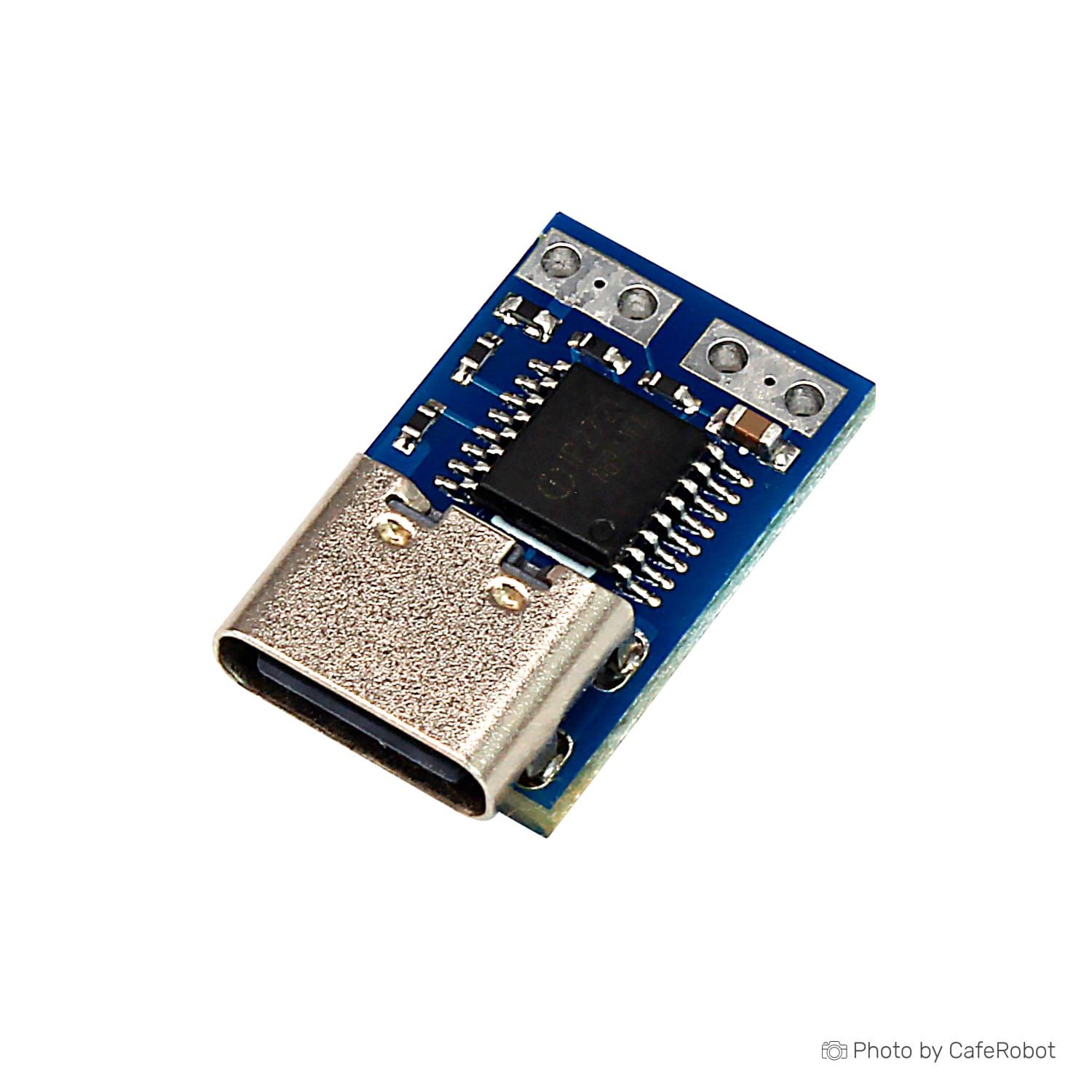

Description of PDC004 PD23.0 to DC Decoy Fast Charging:
PDC004uses a hardware PDidentification chip.whose identification logic is: decoy triggers a fixed voltage.However, if the voltage to be decoyed is not available,the voltage will be applied for the next gear.
For example:for a 12V product pdc004,if your PD power supply is only 9V at most, or if there is no 12V, the next level is 9v, then the decoy will apply for the next level 9V. PD decoy has a strict communication format. lt will not decoy higher voltage, and will not increase or de crease the voltage output if there is no voltage. lt has no ability to change the power, voltage and current of the power supply
Specifications of PDC004 PD23.0 to DC Decoy Fast Charging:
Type: PDC004-12V
Color: Blue
Size: 10.7x16mm
Material:PCB
