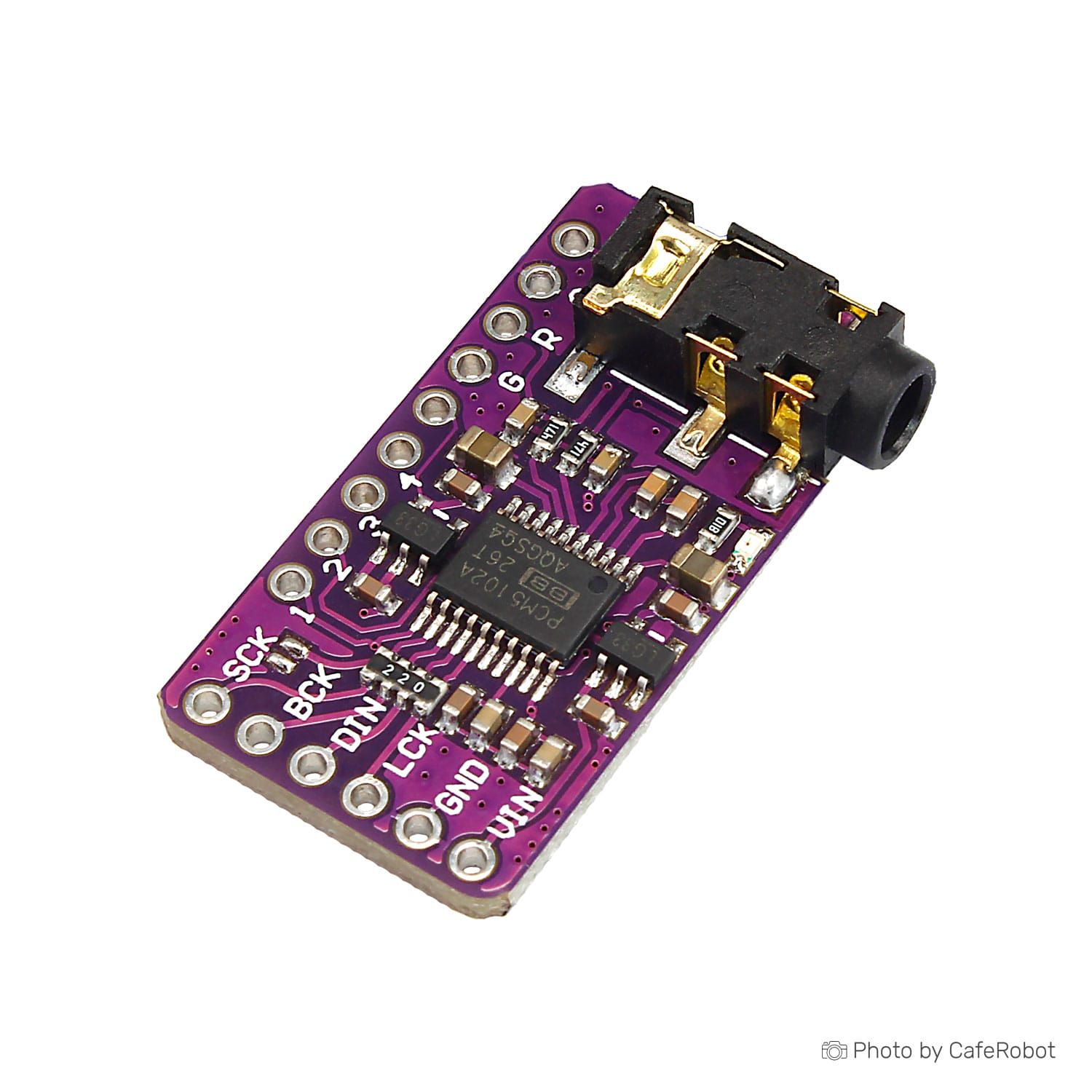

Introducing the PCM5102 I2S Digital Audio DAC Decoding Module, a game-changer in digital audio decoding. This compact and versatile module is designed to deliver high-quality audio playback for your audio projects. Equipped with the PCM5102 DAC chip, it supports I2S digital audio input, ensuring accurate and precise audio decoding. With a signal-to-noise ratio (SNR) of up to 112dB and a dynamic range of 100dB, this module guarantees crystal-clear sound reproduction with exceptional detail and clarity.
The PCM5102 I2S Digital Audio DAC Decoding Module offers a range of impressive specifications. With a sampling rate of up to 32-bit/384kHz, it provides high-resolution audio playback, bringing your music to life with stunning fidelity. Its low-distortion characteristics and low output impedance ensure accurate audio signal transmission to your headphones or speakers. With its user-friendly design and easy connectivity, this module is suitable for a variety of applications, from DIY audio projects to professional audio systems. Elevate your audio experience and unlock the true potential of your music with the PCM5102 I2S Digital Audio DAC Decoding Module.
Features of PCM5102 I2S Digital Audio DAC Decoding Module:
The DAC Module provides a super affordable high-quality DAC for the .
Since it’s digital audio, it sounds really good, much the onboard analog audio.
The stereo comes soldered onto the board already.
Uses the PCM5102A DAC to work with the I2S interface
Since it’s digital audio, it sounds really good, much the onboard analog audio. The stereo comes soldered onto the board already.
Specifications PCM5102 I2S Digital Audio DAC Decoding Module:
Type:I2S DAC
Decoder Model: PCM5102
output Interface: AUX 3pin
input Interface: I2S 3pin
SNR : 112dB
Dynamic Range : 112dB
THD+N @ – 1dBFS : -93dB
Full Scale Output : 2.1VRMS (GND center)
Sampling Frequency : 8kHz to 384kHz
System Clock Multiples (fSCK): 64, 128, 192, 256, 384, 512,768, 1024, 1152, 1536, 2048, 3072; up to 50 MHz
Audio Data rate 16-, 24-, And 32-Bit
Power supply: 5V
library : https://github.com/pschatzmann/ESP32-A2DP/wiki/External-DAC
