Introducing our MLX90614 GY-906-BAA Infrared Temperature Sensor Module, a game-changing device for accurate and non-contact temperature measurements. This advanced module utilizes infrared technology to precisely detect and measure temperatures without physical contact. With its user-friendly interface and wide compatibility, our MLX90614 GY-906-BAA Infrared Temperature Sensor Module is perfect for a wide range of applications, including industrial temperature monitoring, home automation, and medical diagnostics. Say goodbye to traditional temperature measurement methods and embrace the convenience and accuracy of our cutting-edge module.
Equipped with impressive specifications, the MLX90614 GY-906-BAA Infrared Temperature Sensor Module is a must-have for temperature sensing enthusiasts. It offers a wide measurement range of -40°C to +125°C, allowing you to monitor temperatures in various environments. With a high accuracy of ±0.5°C, this module ensures precise temperature readings for reliable data analysis. Its fast response time of 240 ms enables real-time temperature monitoring, making it ideal for dynamic applications. Upgrade your temperature sensing capabilities today and experience the convenience and accuracy of our MLX90614 GY-906-BAA Infrared Temperature Sensor Module.
Specification of MLX90614 GY-906-BAA Infrared Temperature Sensor:
Model: GY-906-BAA
Chipset: MLX90614ESF-BAA
Sensing Distance: 2CM
Power Supply: 3-5V
Communication Method: Standard IIC Communication Protocol
Dimension (L*W*H): 16.8mm*11.46mm*6.2mm
Detector Diameter: 8.2mm

Features of MLX90614 GY-906-BAA Infrared Temperature Sensor:
Small size, low cost

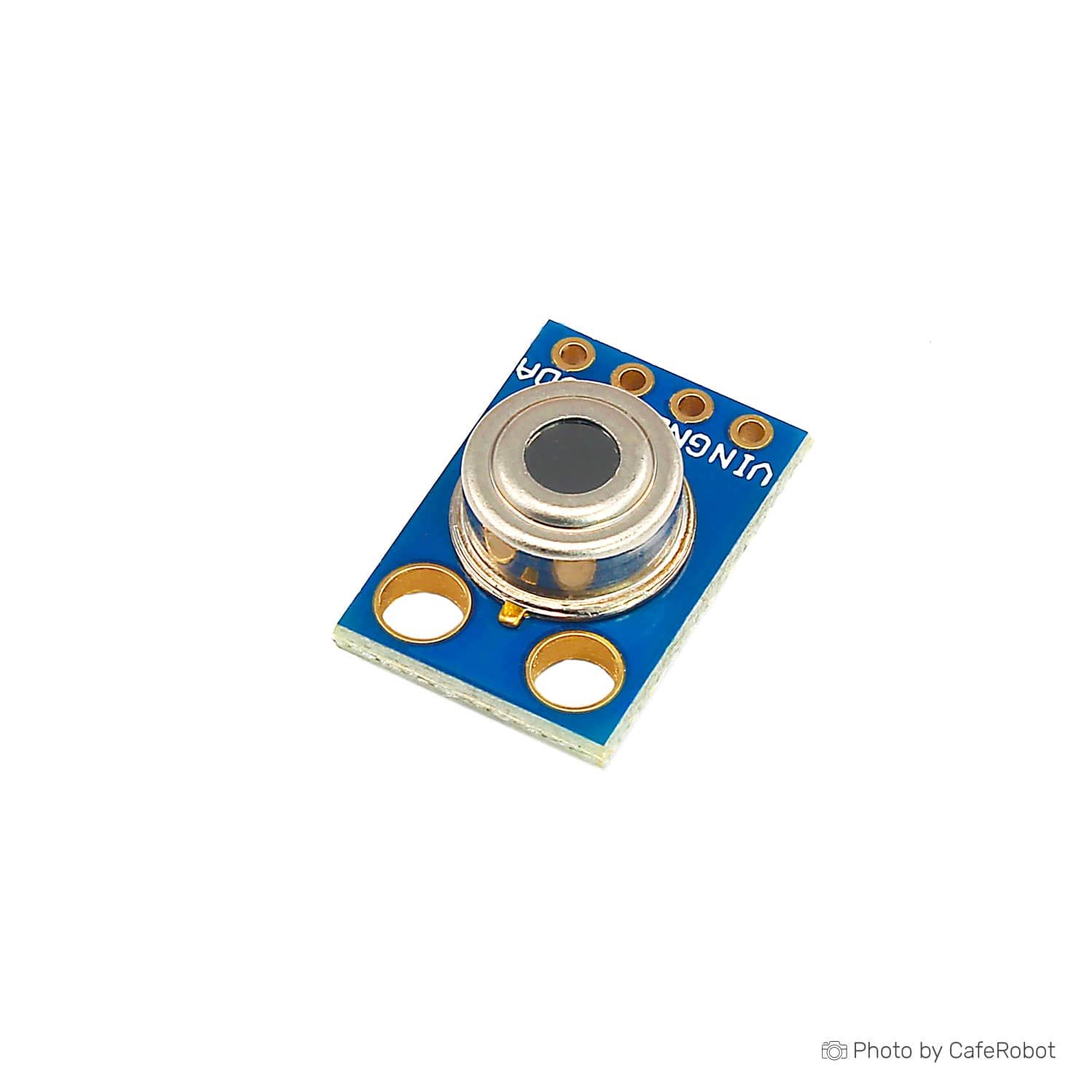

Mounted on a breakout board with two types of pins
10k Pull up resistors for the I2C interface with optional solder jumpers
Easy to integrate
Factory calibrated in wide temperature range:
40°C to +125°C for sensor temperature and
70°C to +380°C for object temperature.
High accuracy of 0.5°C over wide temperature range
(0°C to +50°C for both Ta and To) High (medical) accuracy calibration
Measurement resolution of 0.02°C
Single and dual zone versions
SMBus compatible digital interface
Customizable PWM output for continuous reading
Simple adaptation for 816V applications
Sleep mode for reduced power consumption
Different package options for applications and measurements versatility
Automotive grade
Applications of f MLX90614 GY-906-BAA Infrared Temperature Sensor:
High precision non-contact temperature measurements
Thermal Comfort sensor for Mobile Air-Conditioning control system
Temperature sensing element for residential, commercial and industrial building air-conditioning Windshield defogging
Automotive blind angle detection
Industrial temperature control of moving parts
Temperature control in printers and copiers
Home appliances with temperature control
Healthcare
Livestock monitoring
Movement detection
Multiple zone temperature control up to 127 sensors can be read via common 2 wires
Thermal relay / alert
Body temperature measurement
