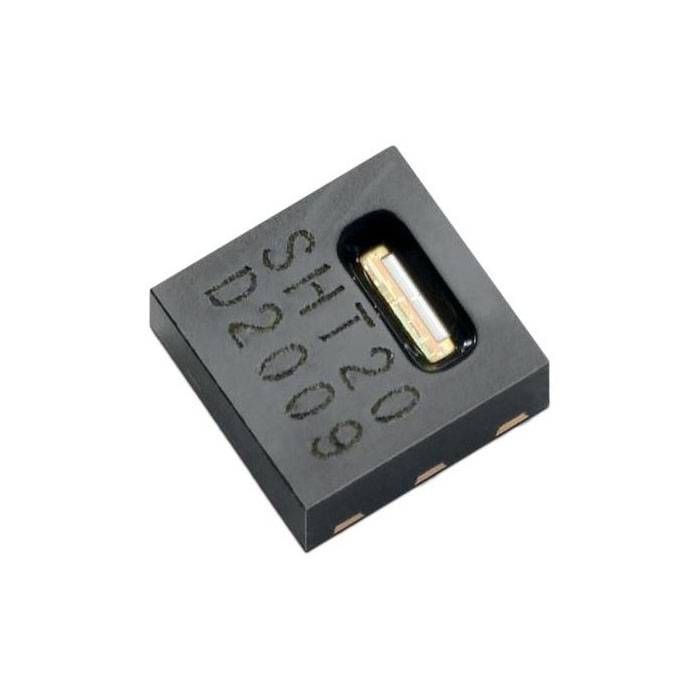

The Sensirion SHT2x series of DFN digital humidity & temperature sensors are CMOSens® based. They are an industry standard, widely used humidity, and temperature sensor. Humidity is measured using a capacitive sensor while the temperature is measured using a band-gap sensor.The SHT2x sensors also contain a version 4 silicon chip with an amplifier, A/D converter, OTP memory, and a digital interface. They come in a plastic package that leaves the sensor area open, protecting the devices from external impact, and providing long-term stability. SHT2x sensors are ideal for both high and low-volume applications.
Specification
Manufacturer: Sensirion
Product Category: Board Mount Humidity Sensors
RH Range: 0 % to 100 %
RH Accuracy: +/- 3 %
Mounting Style: SMD/SMT
Output Type: Digital
Interface Type: I2C
Resolution: 12 bit, 14 bit
Full Temp Accuracy: +/- 0.3 C
Operating Supply Current: 150 nA
Supply Voltage – Min: 2.1 V
Supply Voltage – Max: 3.6 V
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 125 C
Package / Case: DFN-6
Packaging: Cut Tape
Packaging: MouseReel
Packaging: Reel
Product: Board Mount
Brand: Sensirion
Product Type: Humidity Sensors
